NOW IN STOCK

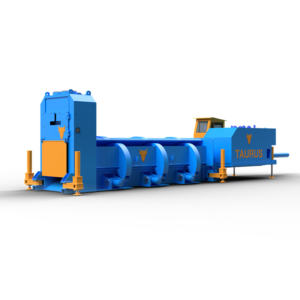

RAPID S Shear Baler

TECHNOLOGY AND EXPERIENCE

A concentration of technology and experience, strength and speed, robustness and simplicity of construction, reliability and safety. THE RAPID S Shear Baler is synonymous with production, low consumption, high performance.

Info Sheet
Product Details
Videos
Related Products

Product Details

KEY FEATURES
  • OVERSTROKE ON EACH WING (patented)
  • “ECA” cutting stroke economizer
  • “HP” Working cycle economizer
  • “KNEE” toggle with rotary encoder
  • “CSA” cylinder end stroke dampers
  • “SIRL” integrated function system
  • “TER” monitoring precompression cycle
  • “TS” teleassistance
  • CETOP STANDARD VALVES
  • VDP: vibrating damping platform*
  • IRO: oil heating system*
  • Soft starter for electric motors
  • Control working parameters
  • Automatic lubrification of the hinges*
  • Automatic lubrification system
  • Blade screws tensioning device
  • Interchangeable wear plates bolted on the box
  • Oil cooling device*
  • Preset operating modes (depending on scrap)
  • Exhaust filtering
  • Independent external filtering
  • Filtering on the pilot circuit
  • Air filters
  • Safety kit*
  • … AND MORE

* on request

Categories ,
×
u/m Rs117 Rs117 Rs117
Cutting force tons 1100 1200 1300
Clamp tons 280 280 280
Bale dimension mm 1000x700 1000x700 1000x700
Open box width mm 2900 2900 2900
Box length mm 7200 7200 7200
Cylinders per wing n. 3 3 3
Max. compression force (each wing) tons 450 450 450
Main cylinder compression force tons 150 150 150
Main electric power kw 2x200 2x200 2x200
Diesel engine hp 560 560 560
Indicative weight tons 190 210 210
RAPID shear balers are designed for heavy duty work, for those who demand quality, clean and high density scrap metal. These Machines adapt to heavy duty, suitable to shear, particular consistency scrap (demolition, production scraps, stamping and rolling trimmings, pantographed sheet metal scraps, reinforced concrete rod, rails…). The RAPID Shear Baler comes in two different configurations, “H” and “S” type. The RAPID S Shear Baler type is supported by two connected, independent frames; one part supporting the shear and the compression box, the other part, the engines and the hydraulic system. The machine includes a cover to protect the shear head and covers to protect the cylinders of the lids. The hydraulic system is covered and protected by a platform mounted longitudinally along the machine above the feeding cylinder. Complete with cabin, ladder and handrails, the RAPID S Shear Baler does not need foundations. This machine is the evolution of the well-established and tested “swinging wing” compression system.
