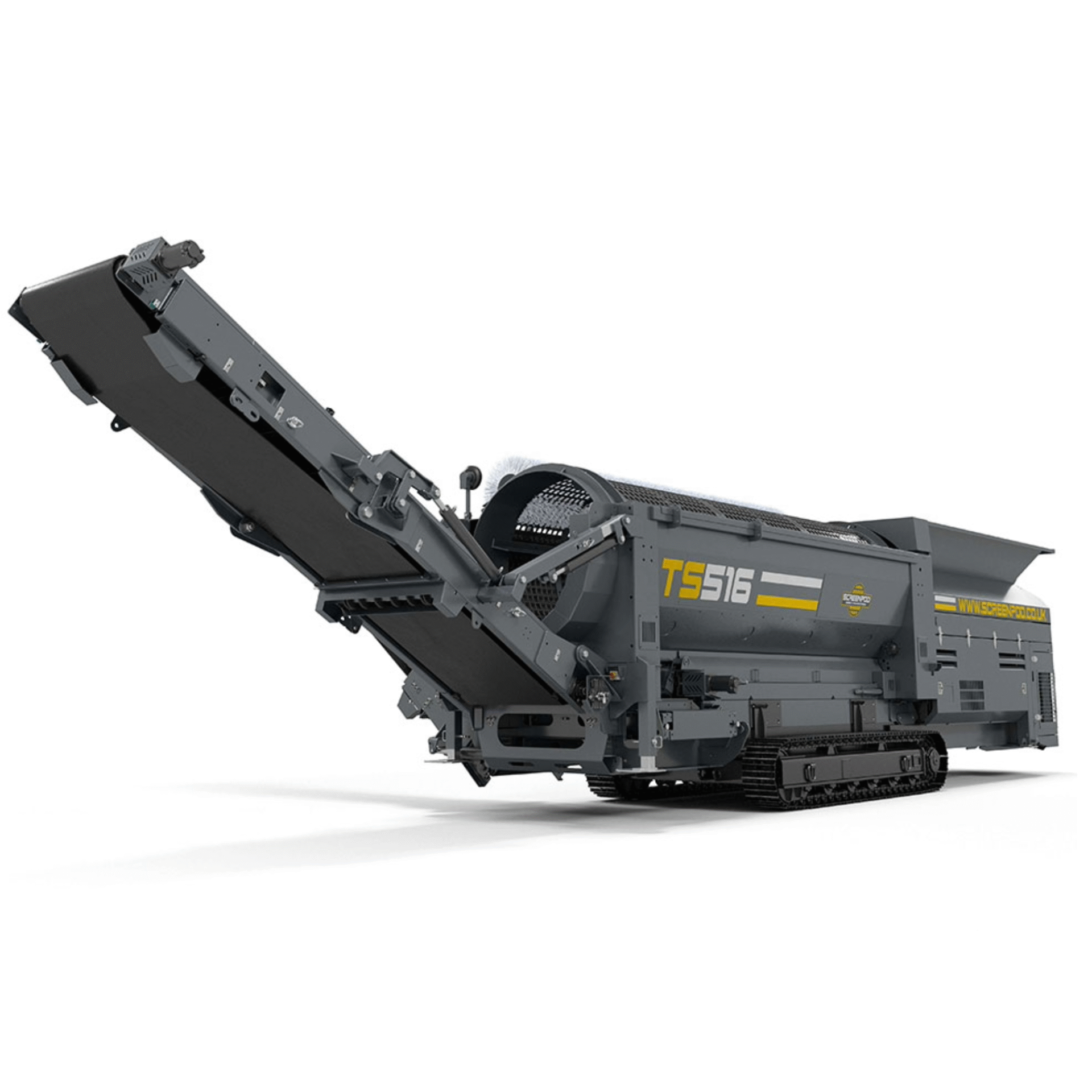

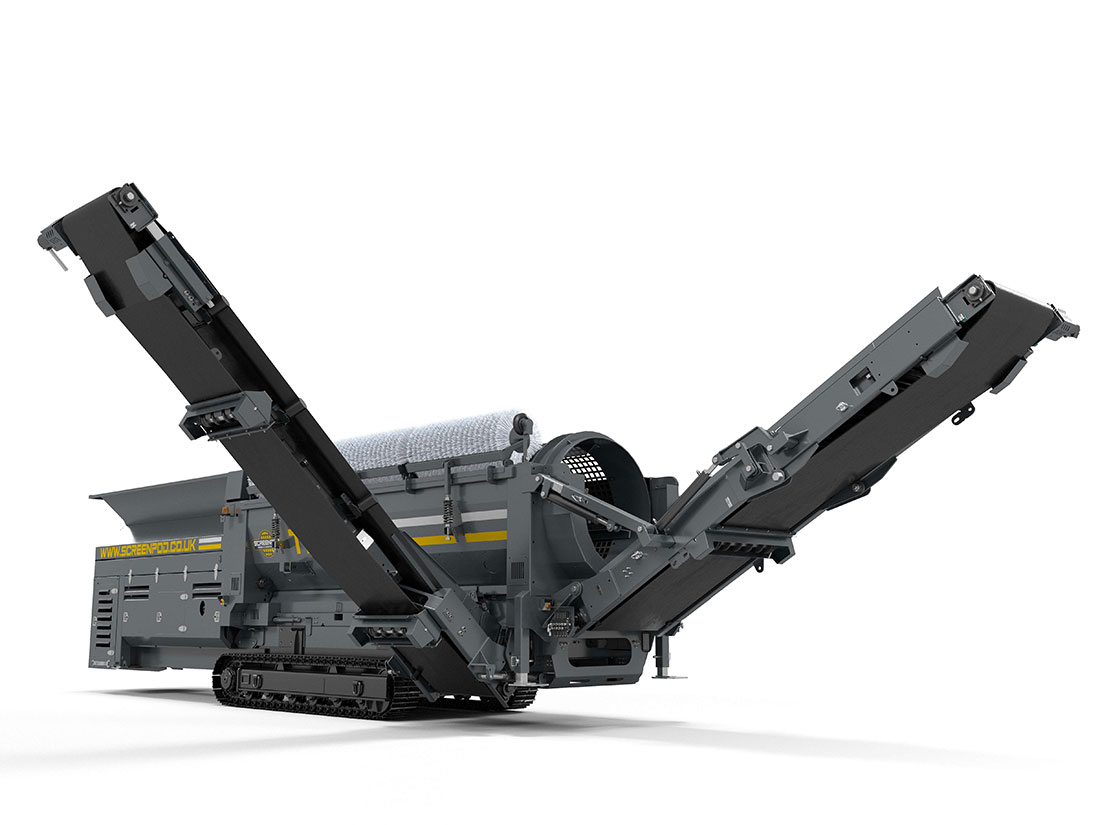

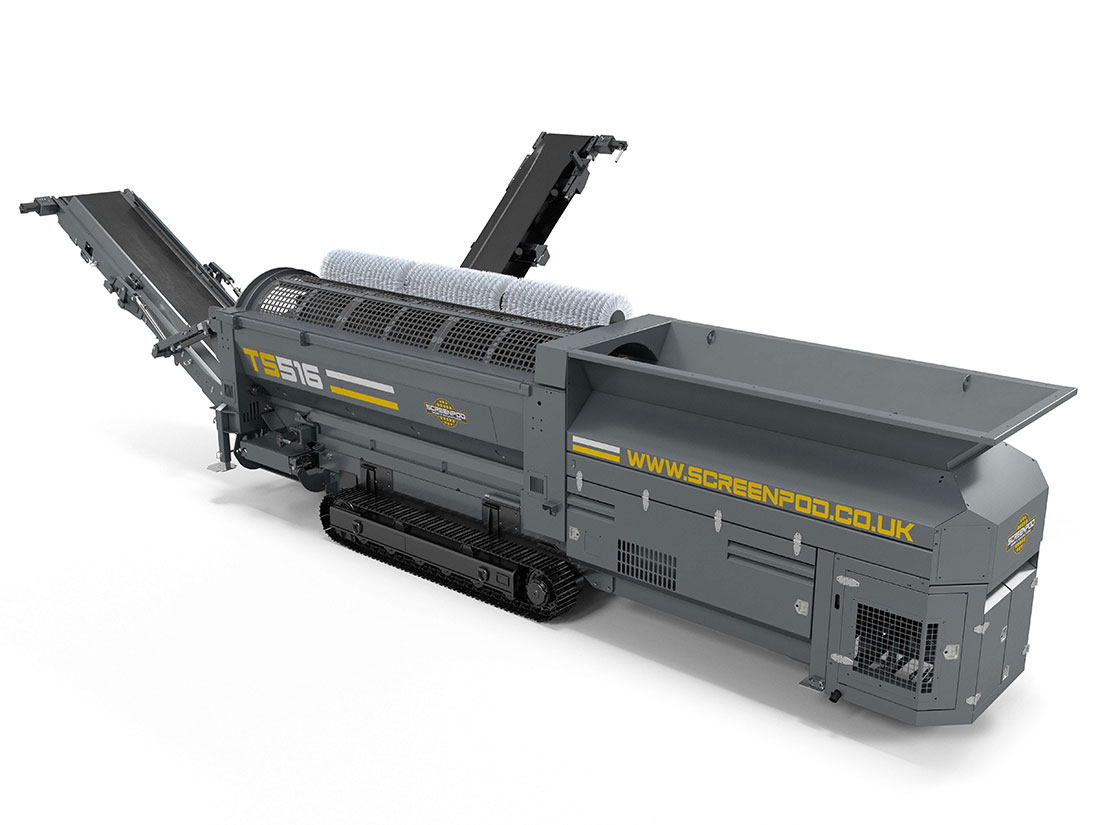

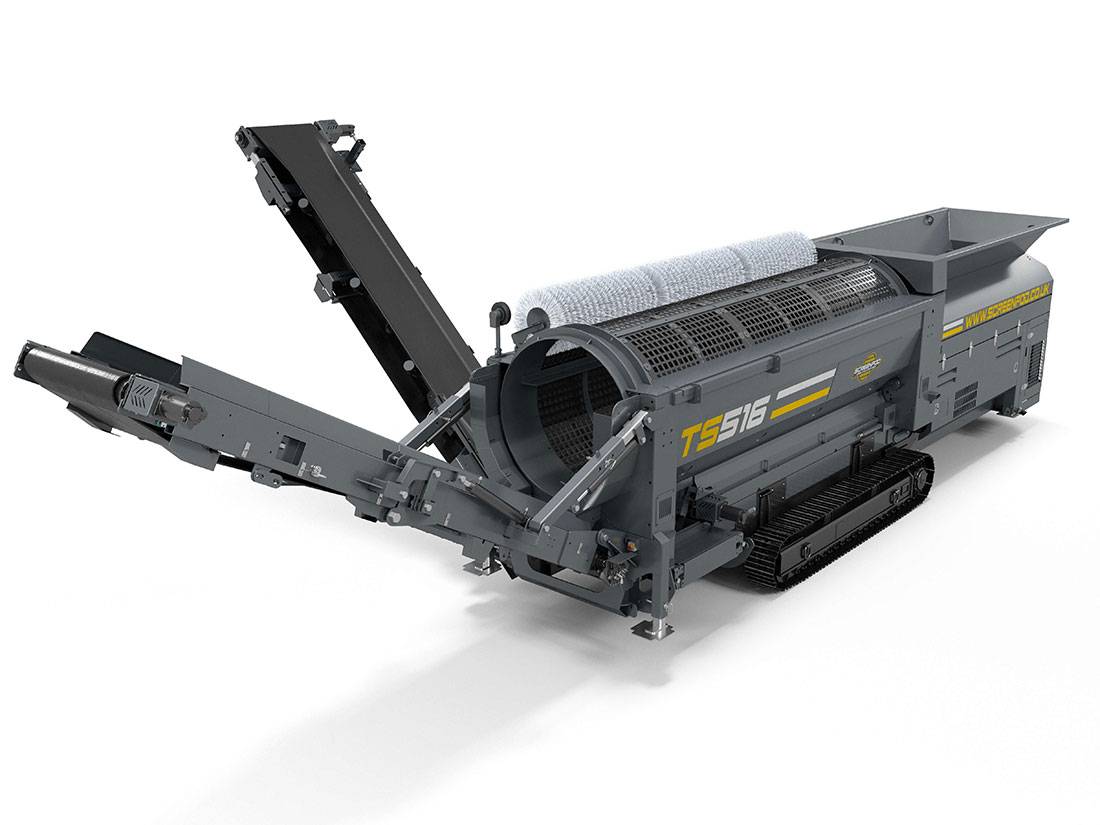

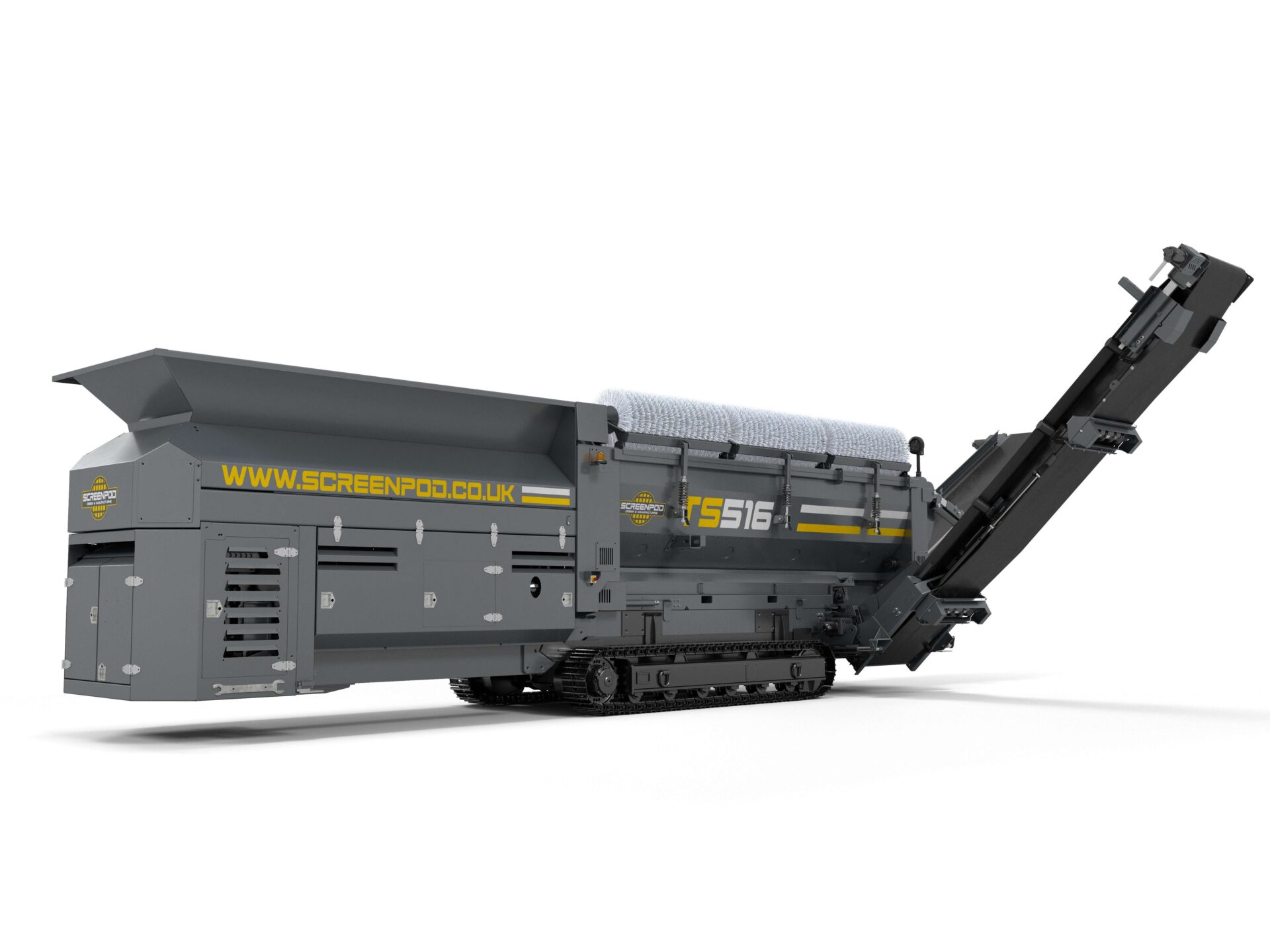

The TS516 is a high‑capacity trommel screen engineered for efficient material separation across construction, recycling, and industrial applications. Its 5.15m x 1.37m screening drum, combined with aggressive RPM and a 4‑wheel‑drive drum system, delivers strong throughput, excellent material classification, and reduced clogging even in demanding conditions.
Variable drum and conveyor speeds allow operators to fine‑tune material flow for optimal performance, while the adjustable 0–4° drum angle offers flexibility across different material types. A quick‑release drum system enables fast drum changes and simplified maintenance, minimizing downtime and keeping production moving.
Built on a rugged tracked chassis with a large capacity hopper and multiple access doors, the TS516 is designed for easy setup, service access, and reliable operation in tough environments. Compatible with Tier 3, Tier 4F, and Stage 5 engine options, it provides dependable power with low emissions.
Ideal for screening C&D waste, compost, timber, RDF/SRF, plastics, household waste, and more, the TS516 is a versatile, durable, and efficient solution for high‑volume material processing.
This product can be used for the following applications:
| Length | 13.37m (43’ 8”) |
|---|---|
| Width | 6.37m (20’ 9”) |
| Height | 3.15m (10’ 3”) |
| Weight | 14,500kg (32,000lbs) |
